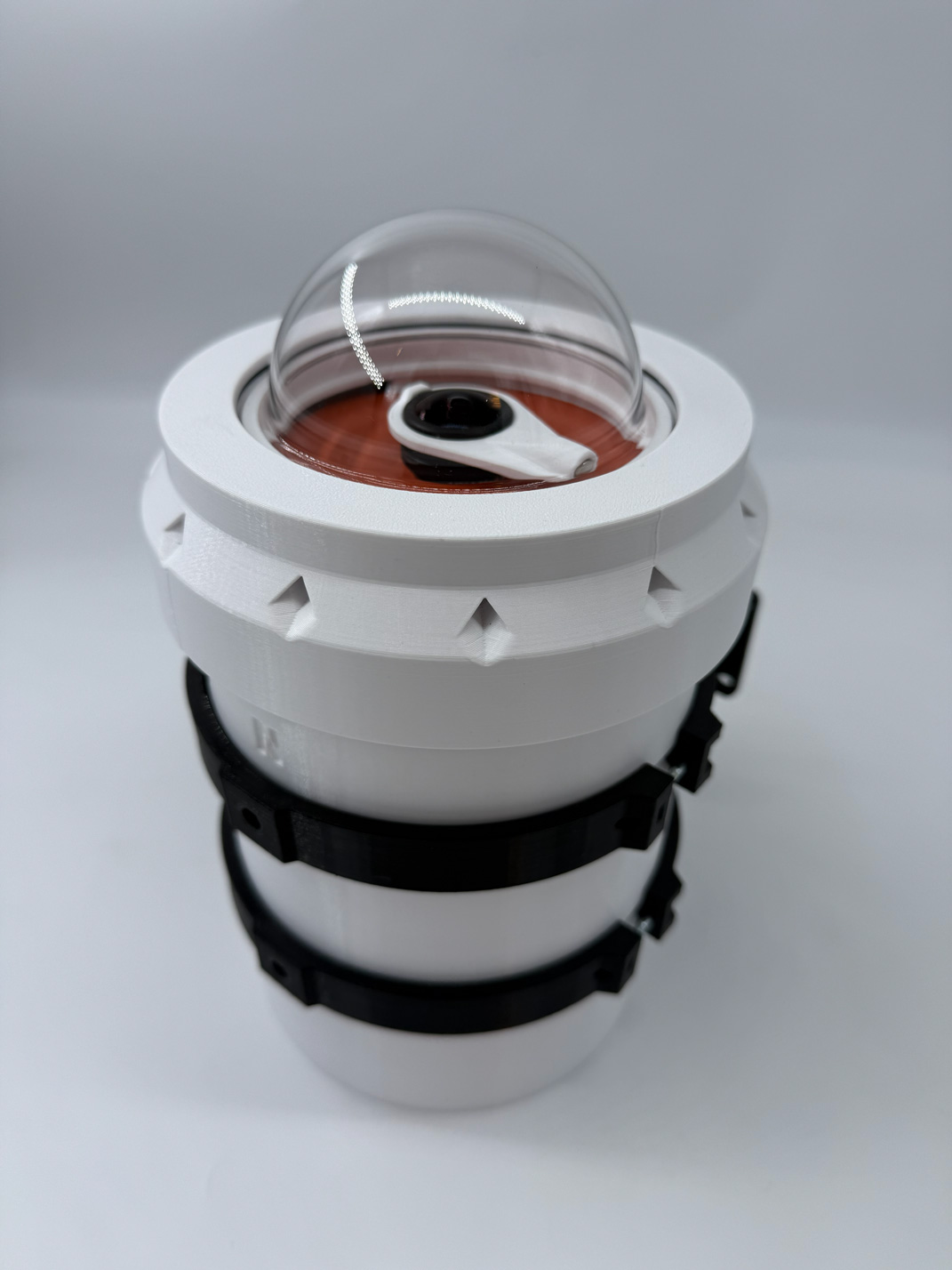

All-Sky Camera Enclosure Pro

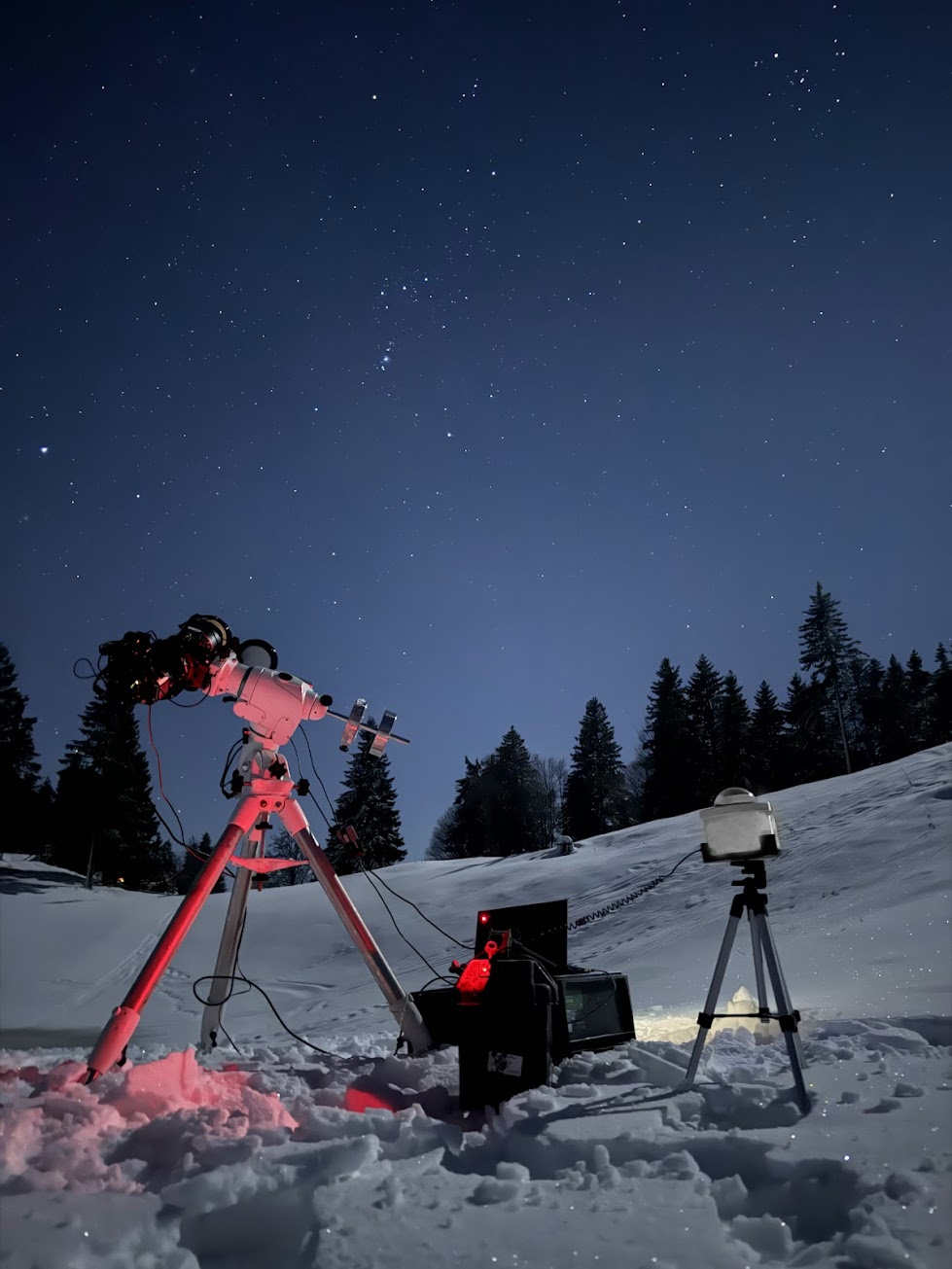

Introducing the new AllSky Camera Enclosure Pro by DeepSkyDad. Based on your feedback and insights from NEAF, we’ve developed a fully-featured, out-of-the-box allsky enclosure solution for observatories, remote setups, and dark site imaging. This new enclosure offers several market-first innovations to deliver a more reliable and user-friendly experience than ever before.

Innovative enclosure

• Threaded dome lid
• O-ring seals

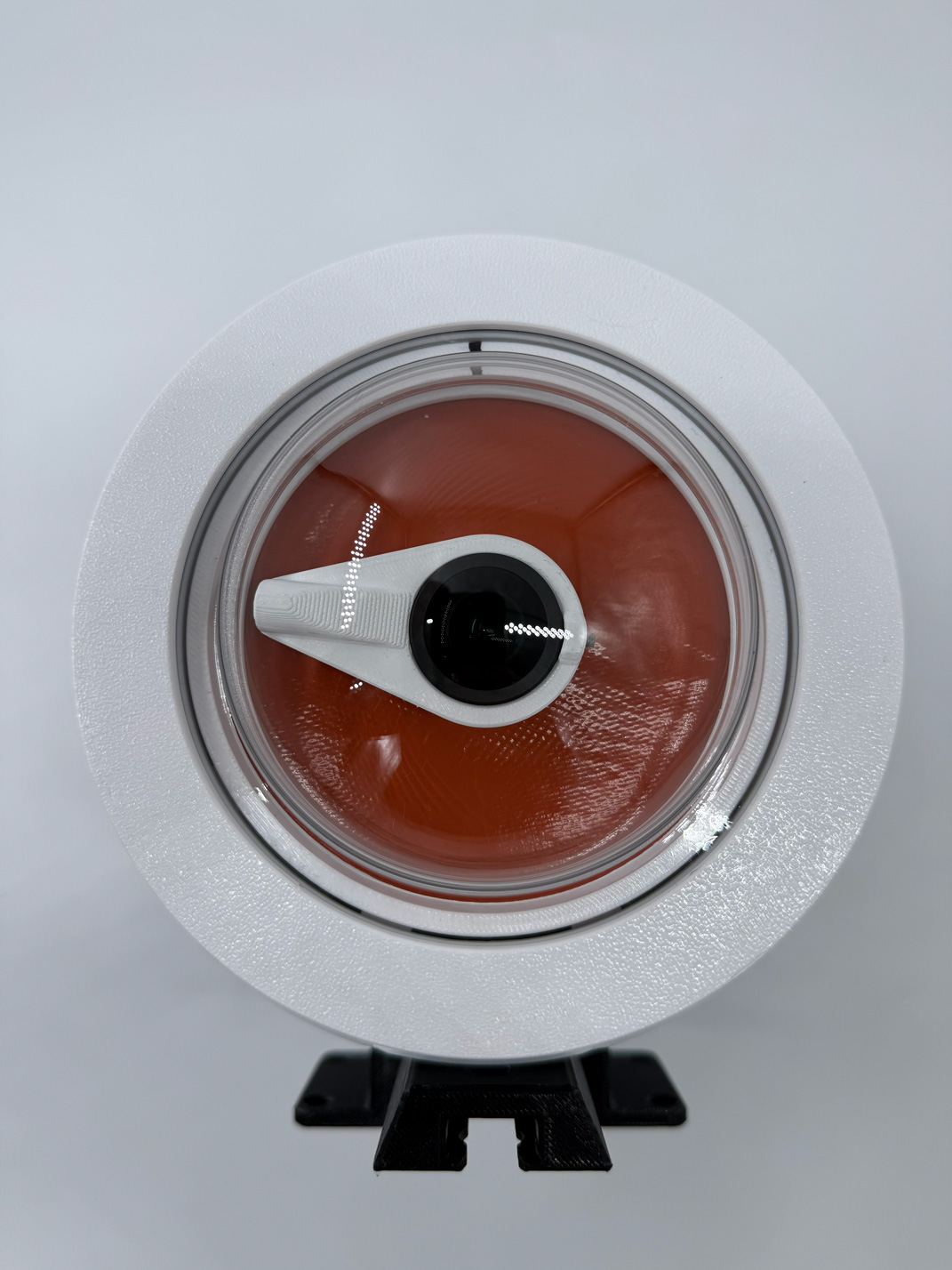

• Magnetic lens focusing without opening the dome***
• Innovative acrylic dome
• North marker
• Compression rings with M6 threads, 3D printed dovetail and wall mounting clamp
• Self-regulated heating & ventilation system
• Wifi connectivity
  • Wi-Fi 5 – 802.11ac (2.4Ghz / 5Ghz)
  • Hotspot / Wi-Fi Client
• Ethernet connectivity

Hardware & software (plug & play)

• Camera:
  • Player One Neptune-C II (default)
  • ZWO ASI676
  • no camera*
• Lens:
  • 2.5mm, 170° FOV (default)
  • 1.55mm, 185° FOV
• Computer
  • Raspberry Pi 5 – preconfigured (default)
    • active cooling
    • SD card (64GB)
    • indi-allsky
  • no computer**

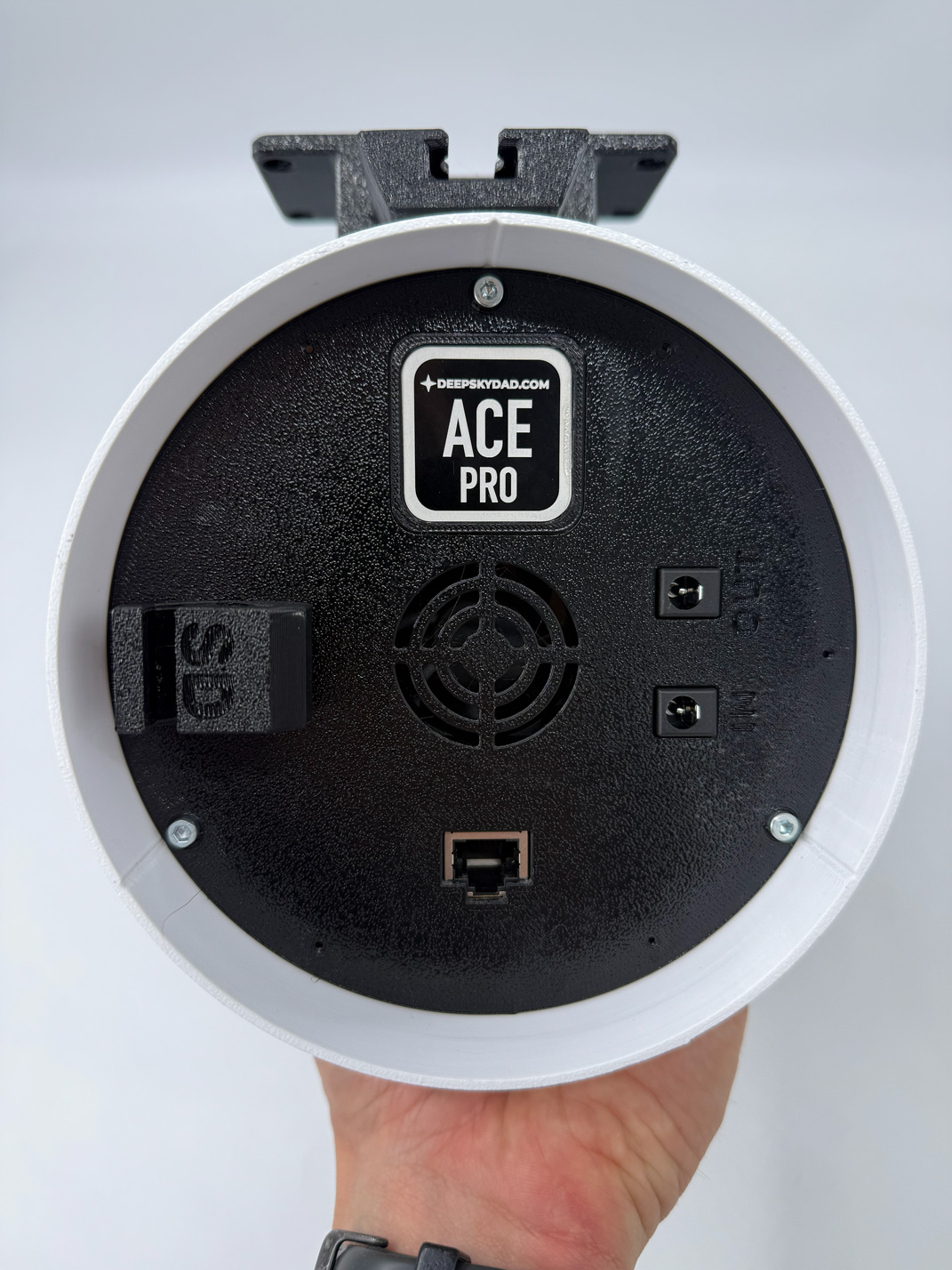

• Enclosure management system (EMS)
  • self regulated heating***
  • self regulated ventilation
  • input/output 12V ports (5.5mm x 2.1mm)
  • integrated sensors for humidity and temperature
  • management user interface
  • indi-allsky overlays
  • optional: additional sensors – wind speed, rain sensor, SQM, Alpaca integration,… (under development)
• POE (default)
• Input power requirements: 12v 2.5A or POE+ (30w, IEEE 802.3at)

*if you use a camera other than the ones we provide, make sure it supports attaching widefield lenses via T2 thread.  You may also need to fine-tune the settings.

**circuit tray is compatible with Raspberry Pi 3/4/5 by default. If you wish to use a different computer, like for example ASIAIR mini, please contact us via [email protected].

***Our enclosure comes with a high-performance sillicone sealed heater that maintains a stable internal dome temperature, preventing focus drift and eliminating the need for lens motorization. With our innovative magnetic lens focuser, a single manual focus adjustment during installation is all that’s required.
